Sheet Metal with SolidCraft

Free course · 12 sheets · SolidCraft 0.21

Every sheet metal part starts flat.

Short lessons where you build a real part in SolidCraft, then check your numbers against SolidCraft's own: flat size, bend allowance, bend count. By the last sheet you take a small enclosure from sketch to a DXF for the laser.

Start with sheet 01 Install SolidCraft 0.21

0 of 12 sheets inspected

156.4 mm132.68 mm
Sheet 12, flat: 156.4 × 132.7 mm · 5 bends · 92 holes

Drawing register

  1. 01 Sheet Metal RulesSheet Metal Rules Explained (Thickness, Radius, K-Factor) 5 min InspectedNext
  2. 02 Base FlangeYour First Sheet Metal Part: a Base Flange from a Sketch 5 min InspectedNext

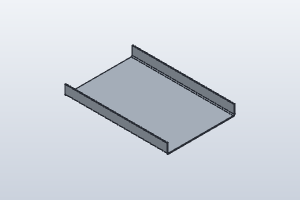

  3. 03 Edge FlangesEdge Flanges: Height, Angle and Bend Position 5 min InspectedNext

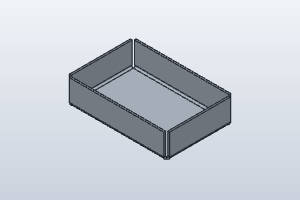

  4. 04 Corners and ReliefsFlanges on Several Edges: Corners, Gap and Corner Reliefs 6 min InspectedNext

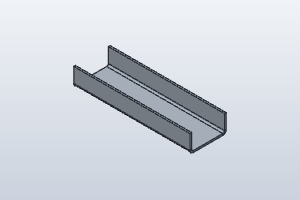

  5. 05 Contour FlangeContour Flange: a Channel from an Open Sketch 5 min InspectedNext

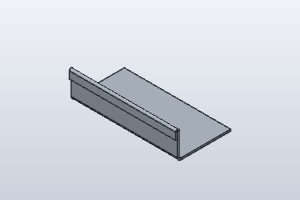

  6. 06 HemsHems: Fold an Edge Back on Itself 4 min InspectedNext

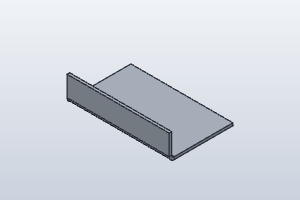

  7. 07 FoldFold: Bend a Flat Plate Along a Sketch Line 5 min InspectedNext

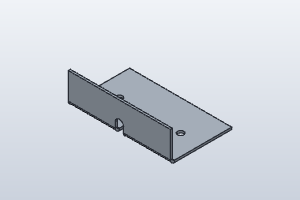

  8. 08 Unfold, Cut, RefoldHoles Across a Bend: Unfold, Cut, Refold 5 min InspectedNext

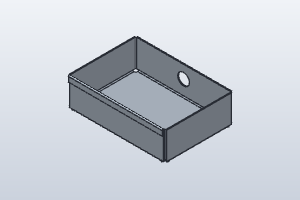

  9. 09 Convert to Sheet MetalConvert to Sheet Metal: Turn a Box Into a Tray 5 min InspectedNext

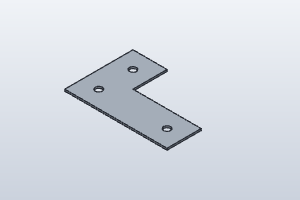

  10. 10 PerforatePerforate: Fill a Sheet with a Pattern of Holes 5 min InspectedNext
  11. 11 Flat Pattern, Bend Table, DXFFlat Pattern, Bend Table and DXF for the Shop 5 min InspectedNext
  12. 12 Final project: enclosureFinal Project: A Small Enclosure from Sketch to DXF 10 min InspectedNext
